Solar panels on roof

450W Solar Panel

Solar panels take advantage of one of nature’s most powerful yet free resources: the energy produced by the sun. Solar panels, also known as photovoltaic systems (PV systems), use semiconductor technology to convert energy from sunlight into electricity that can power your household or business.


On average, more than 8,000 solar panels are installed in the UK alone each month. The growing popularity of solar panels means that the prices have gone down by 60% over the past decade. The prices of solar panels have steadily decreased over the last years, as new technologies have been discovered to make solar energy components more cost-efficient.

Key benefits of solar panels are:

  • Electricity all year round - Solar panels generate clean, emission-free electricity to power your home all year round, while their long life span  makes them a long-term good investment.

  • Increase the market value of your property & earn money from solar grants - Selling surplus electricity generated by your solar panels is another advantage that solar panels offer. You will not simply earn money, but also increase the market value of your house.

  • Reduce your carbon footprint - A solar-powered home reduces the carbon footprint and helps to eliminate domestic harmful emissions.

  • Store your energy - Used with a Sunsynk hybrid inverter, you can store you excess energy to use at night when the sun isn't shining and when electricity prices are at their highest.

Black Solar Panel-01_edited.jpg
  • Rated Max Power (Pmax) -                                     450W

  • Voltage at Pmax (Vmp) -                                       14.50V

  • Current at Pmax (Imp) -                                        10.85V

  • Open-Circuit Voltage (Voc) -                          49.30+3%V

  • Short-Circuit Current (Isc) -                           11.60+3%A

  • Nominal Operating Cell Temp (NOCT) -             45+2°C

  • Maximum System Voltage -                              1500VDC

  • Maximum Series Fuse Rating -                                  20A

  • Operating Temperature -                        -40°C to +85°C

  • Application Class -                                                 Class A

  • Call Technology -                                                 Mono-Si

  • Weight (Kg) -                                                               23.5

  • Dimensions (mm) -                              2094 X 1038 X 35

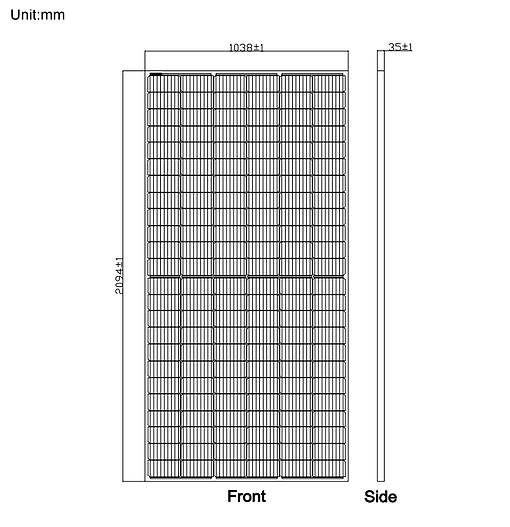

Measurements

Complex Drawing.png

IV Curve

IV Curve.png
